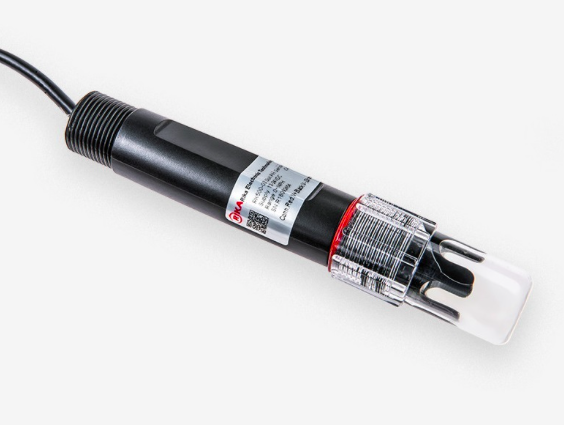

SOIL pH SENSOR

The soil contains many substances such as organic acid, inorganic acid,alkali and salt, due to the different content of various substances, sothe soil shows different ph value.Usually the pH in the range of 6.5-7.5soil is called the neutral soil.
RK500-02 pH sensors measure the pH valueshould be a good solution without professional calibration instruments,complex operation, expensive and difficult to carry, can be forcontinuous measurement of soil, waste water pH value, suitable foragriculture, sewage treatment plant, chemical industry, printing anddyeing, paper making, pharmacy, electroplating and environmentalprotection and other fields.

SPECIFICATION

1. Supply 12-24VDC
2. Temperature compensation 0-60℃
3. Output RS485,4-20mA
4. Pressure Resistance < 3bar
5. Measuring principleopticalPower consumption < 10W
6. Operating Temperature0-+80℃
7. Dimension 45*135mm
8. Main Material 316L
9. Ingress Protection IP68
10. Storage 10-60℃ @ 20%-90%RH
11. Cable length 5m default

RS485/RS232 CONVERTOR

Thingstels RS485/RS232 convertor Features 2 serial inputs and 1 alarminput & relay output, UC1152 supports standard LoRaWAN class Cprotocol, which is perfectly used as a remote data logger or a remoteI/O controller. Coupled with a LoRaWAN gateway, UC1152 enables usersto fastly build up a LoRa-Based IoT solution for data collection, remotecontrol and monitoring of field devices.

SPECIFICATION

1. Connector : 1 × 50 ΩSMA(Center PIN: SMA Female)
2. Protocol : LoRaWAN 1.0/1.0.2 Class C
3. Port : 1 × Micro USB Port
4. Connector : Terminal block
5. Digital Inputs : 2 x Opto-isolated DigitalInputsDC Voltage (3-24V)
6. Digital Outputs : 2 x SPDT Relay ContactRating:3 Amp DC (Max: 30 V) or 3 AmpAC (Max: 250 V)
7. Power Supply Input Voltage : 5-24V DC(Standard adapter: DC 12V/0.5A)
8. Dimensions : 79 x 60 x 24 mm (3.11 x 2.36 x0.94 in)
9. Mounting : Desktop or Wall Mounting
10. Reset Button : 1 × RESET (Inside TheDevice)
11. LED Indicators : 1 × System, 1 × ACT
12. Built-in : Watchdog
13. Operating Temperature : -40°C to 70°C
