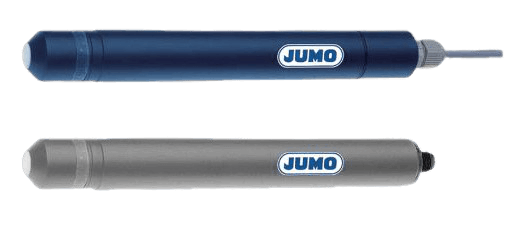

These membrane-covered amperometric sensors are used to measure
the concentration of free chlorine. The following anorganic
chlorination agents can be measured: chlorine gas (Cl2),
electrolytically generated chlorine, sodium hypochlorite (NaOCl,
chlorine bleaching solution), calcium hypochlorite (Ca(OCl)2), or
chlorinated lime (Ca(OCl)Cl).
The sensors are not suitable for detecting the absence of free chlorine.
The sensors' integrated electronics provide a temperaturecompensated current signal (4 to 20mA)
for the variant with an analog
output signal, and a Modbus RTU signal for the variant with a digital
interface. A downstream device (indicator, controller, recorder, PLC,
etc.) is used for calibration.
The sensors can be connected directly to various indicating
devices/transmitters/controllers. They provide the voltage required for
supplying the sensors and allow for easy calibration of the measuring
system.
1. 2- and 3-electrode principle
2. Easy calibration
3. Integrated temperature compensation
4. Proven measuring system
5. Electrical connection analog or digital

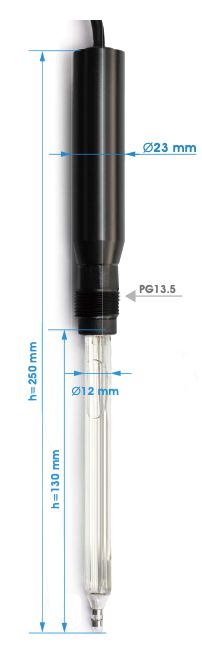

1. Principle : Potentiostatic
2. Range : 0 - 2.000 mg/L, 0 - 20.00 mg/L
3. Resolution : 0.001 mg/L, 0.01 mg/L
4. Temperature range : 0 - 70 °C
5. Pressure : 0 -6 bar
6. Optimum Flow Rate : 25-100 L/h
7. Shell material : Glass+POM
8. Thread Cap : PG13.5
9. Electrode dimensions : ø12x120mm
10. Cable length : 5m
11. Connector : Terminals
12. Output : RS485 Modbus RTU
13. Power input : DC 12V
14. IP rated : IP68
The LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring. The LT I/O Controllers allows the user to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
1. STM32L072CZT6 MCU
2. SX1276/78 LoRa Wireless Chip
3. LoRaWAN Class A & Class C protocol
4. Optional Customized LoRa Protocol
5. Bands: CN470/EU433/KR920/US915
6. EU868/AS923/AU915
7. AT Commands to change
parameters
